Model No.:
APSME - 200 |
| |
|
|
|
|
Features :

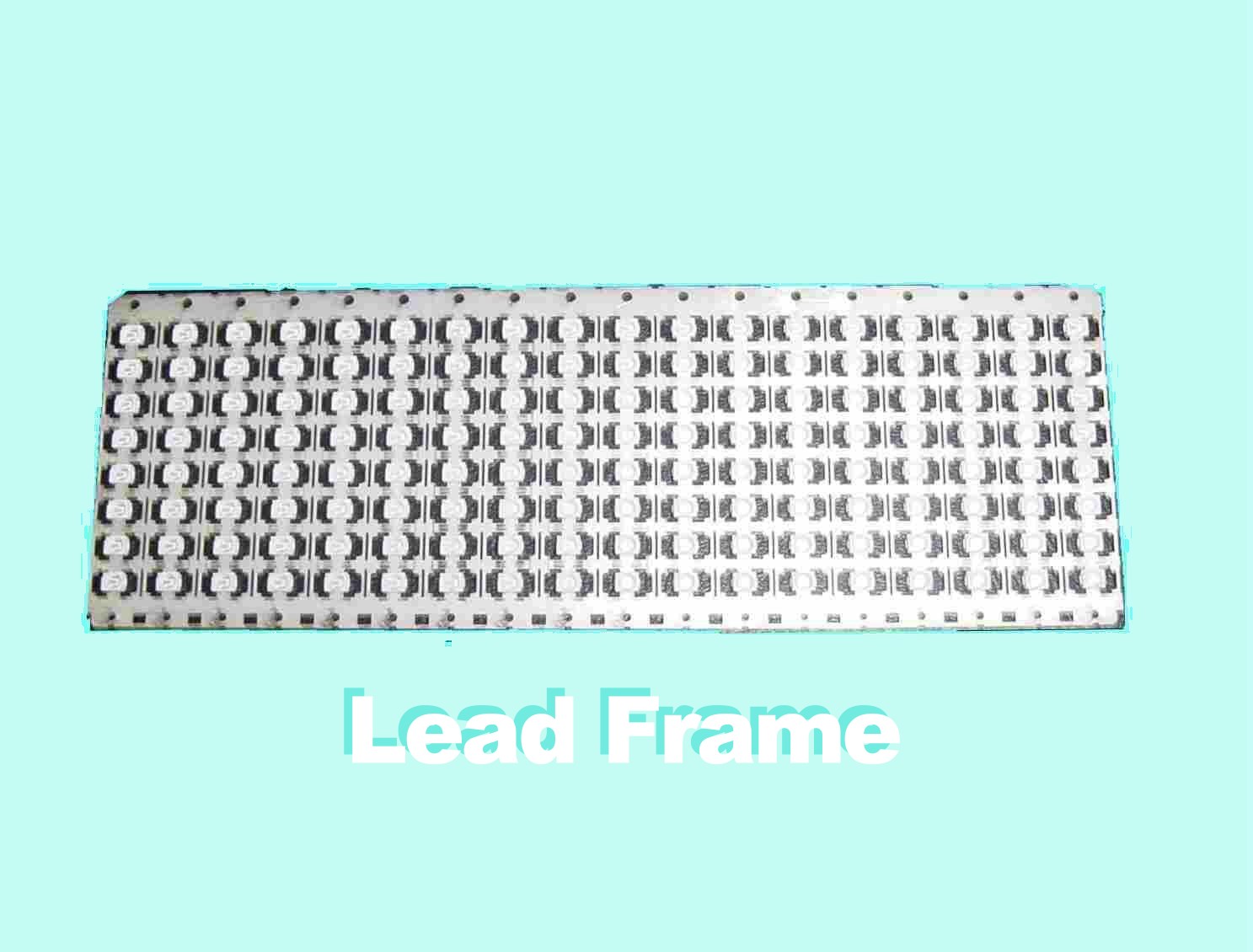

1. Multi-lead frame loading/
unloading station.

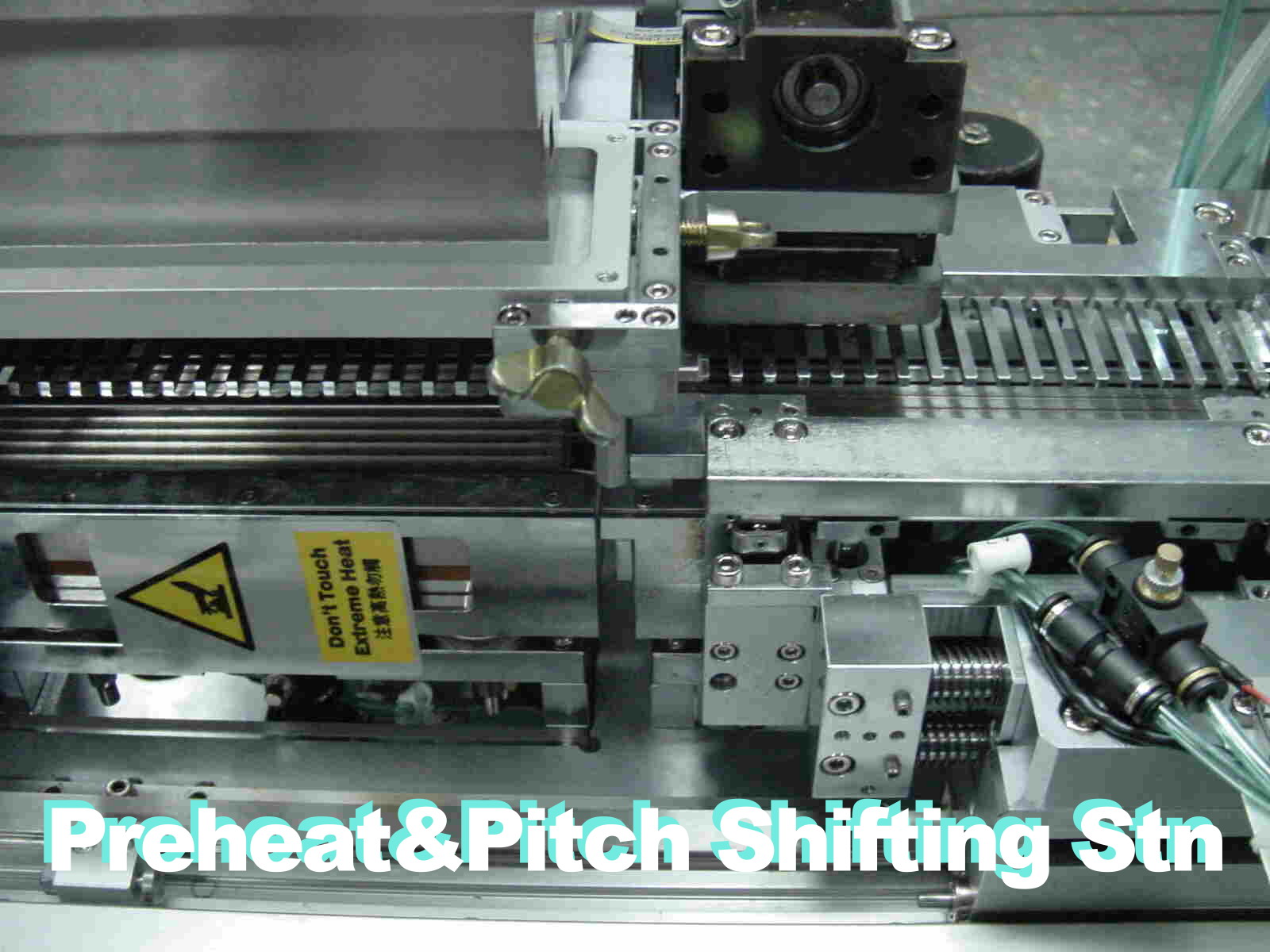

2. Auto pitch shifting action.
3. Safety
protection device to avoid L/F damage.
4. Static electricity
protection device and vacuum cleaner.
5. L/F preheating function
to prevent from moist(0~200ºC).

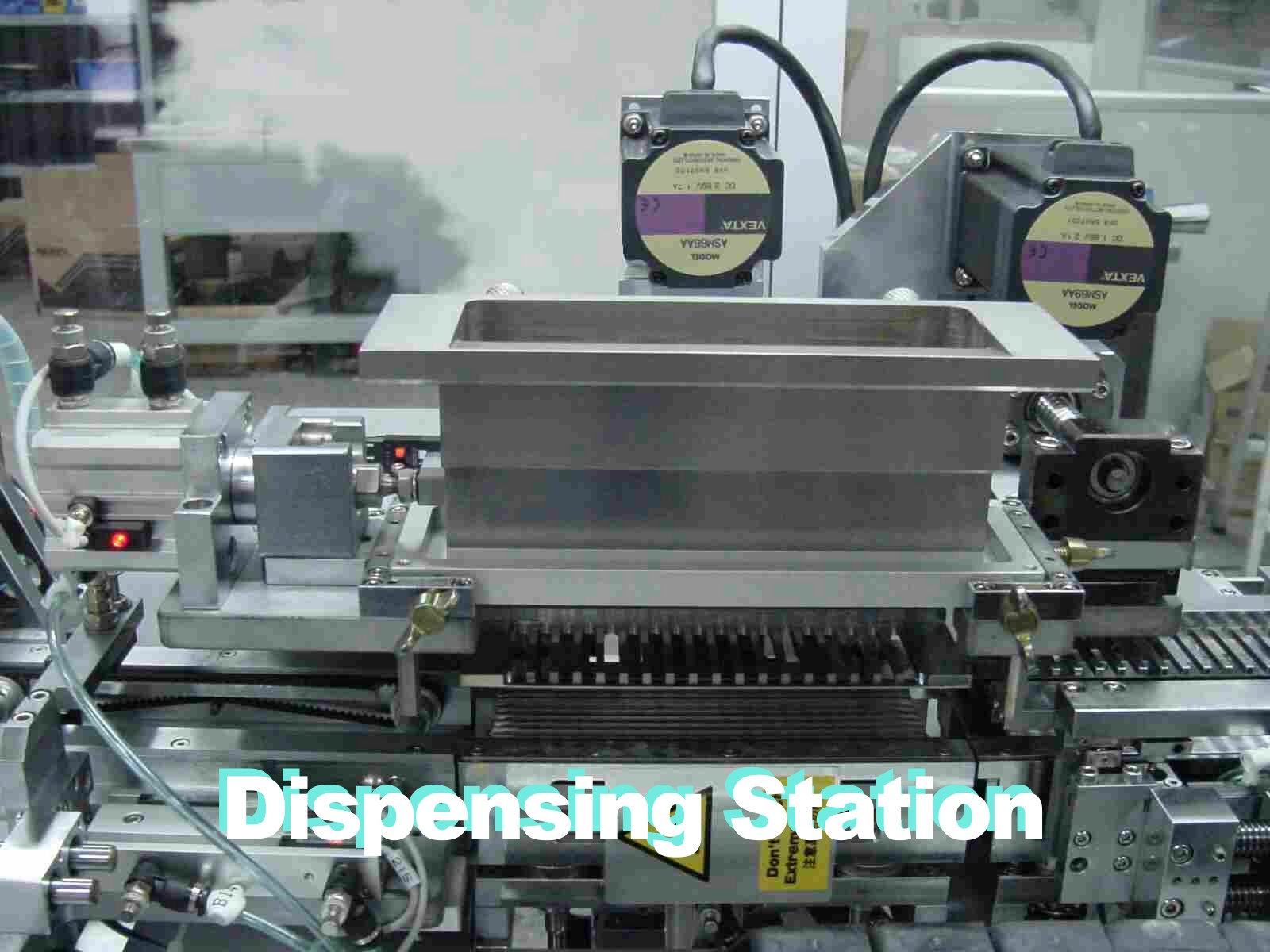

6. Drived by step motor drive, precise
dispensing, digitally programmed (18 nozzles/cycle).
7. Precise
dispenser head design for exact dispensing quantity.
8. Each
station has anti-stop detecting function and trouble yard display,
easy to operate.
9. Whole safety protection device.
10.PLC
control system
11.M-M-I touch interface screen.
12. PPH : 14K.
M/C Size &
Weight :
1. Overall Dimension :
1160 x 580 x 1660 mm ( LxWxH )
2. Net Weight
: 250
kg.
Utility :
1. Power Supply
: AC110V/60 Hz.
2.
Air Supply
: 60~80 psi; 30 L/
min
|
|
