Features :

1. 3-Axis (x,y,z) micro-adjustable mechanism.

2. 2-Axis Goniometer ( x,y Axis ),with mechanical angle ruler.

3. Micro-motor driver element, high speed, precise mechanism.

4. Angle range : 0~75,±0.1° (Up/Down & Left/Right)

5. Multi-point test function, with original calibration.

6. Free setup test function, with original calibration

7. Tyte:6”,8”,12”(round lamp), optional tool for custom type.

8. Average time :2 Sec/Dot

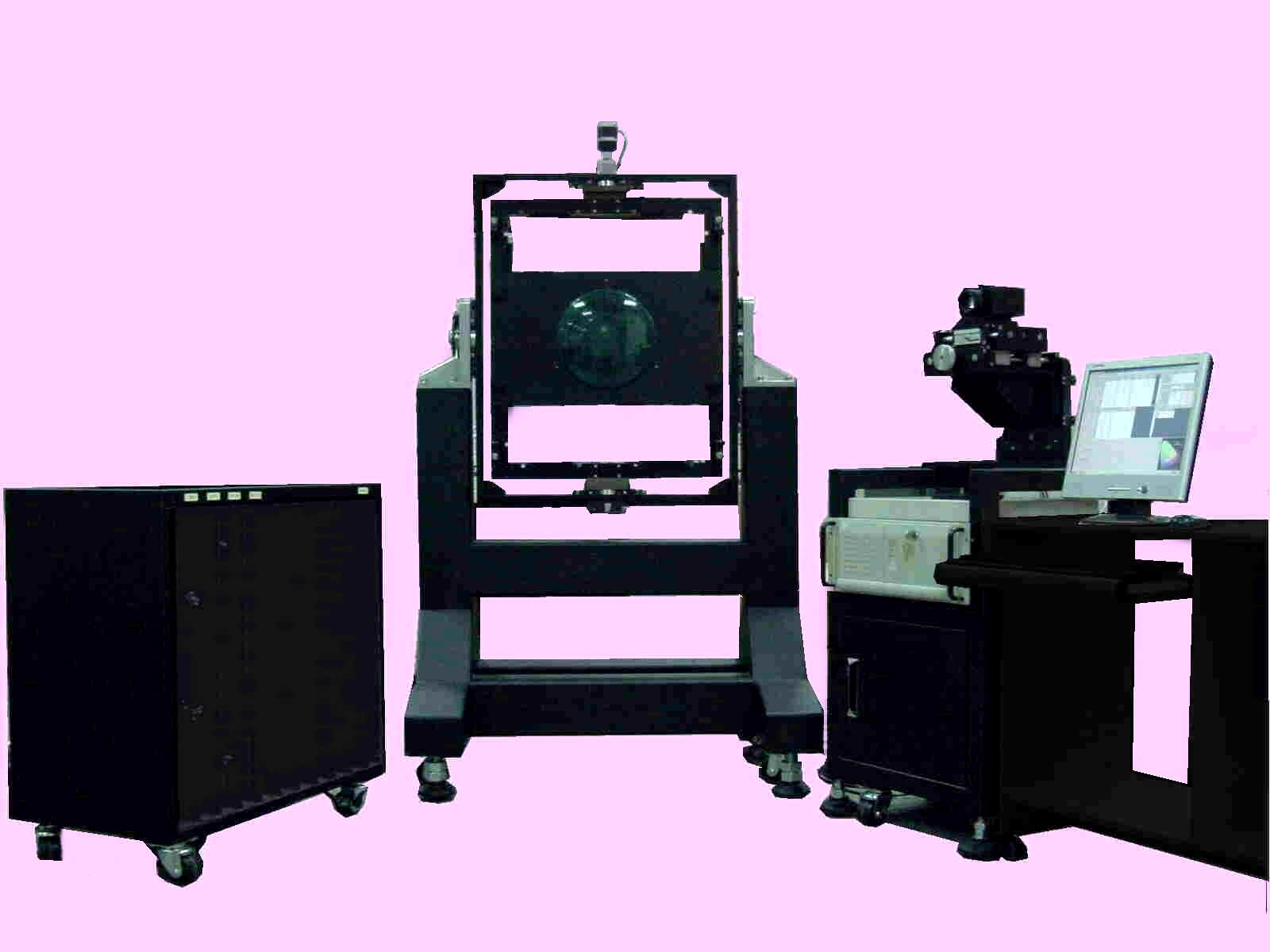

* Tester System Model NO EL-5500

M/C Size & Weight:
1. Overall Dimension  : Traffic light holder: 100x114x190 cm ( LxWxH )

    Tester head holder  : 50x54x130 cm ( LxWxH )

2. Net Weight            : Traffic light holder: 250 Kg

    Tester head holder  : 90Kg

Utility :

1. Power Supply         : AC110V/60 Hz, 5Amp or AC220V/50 Hz, 3Amp

2. Power Consumption: 16.5 W
