Features :

1. Tray auto Loading/ Unloading (Cap. 5 EA).

2. Units auto Loading/Unloading.

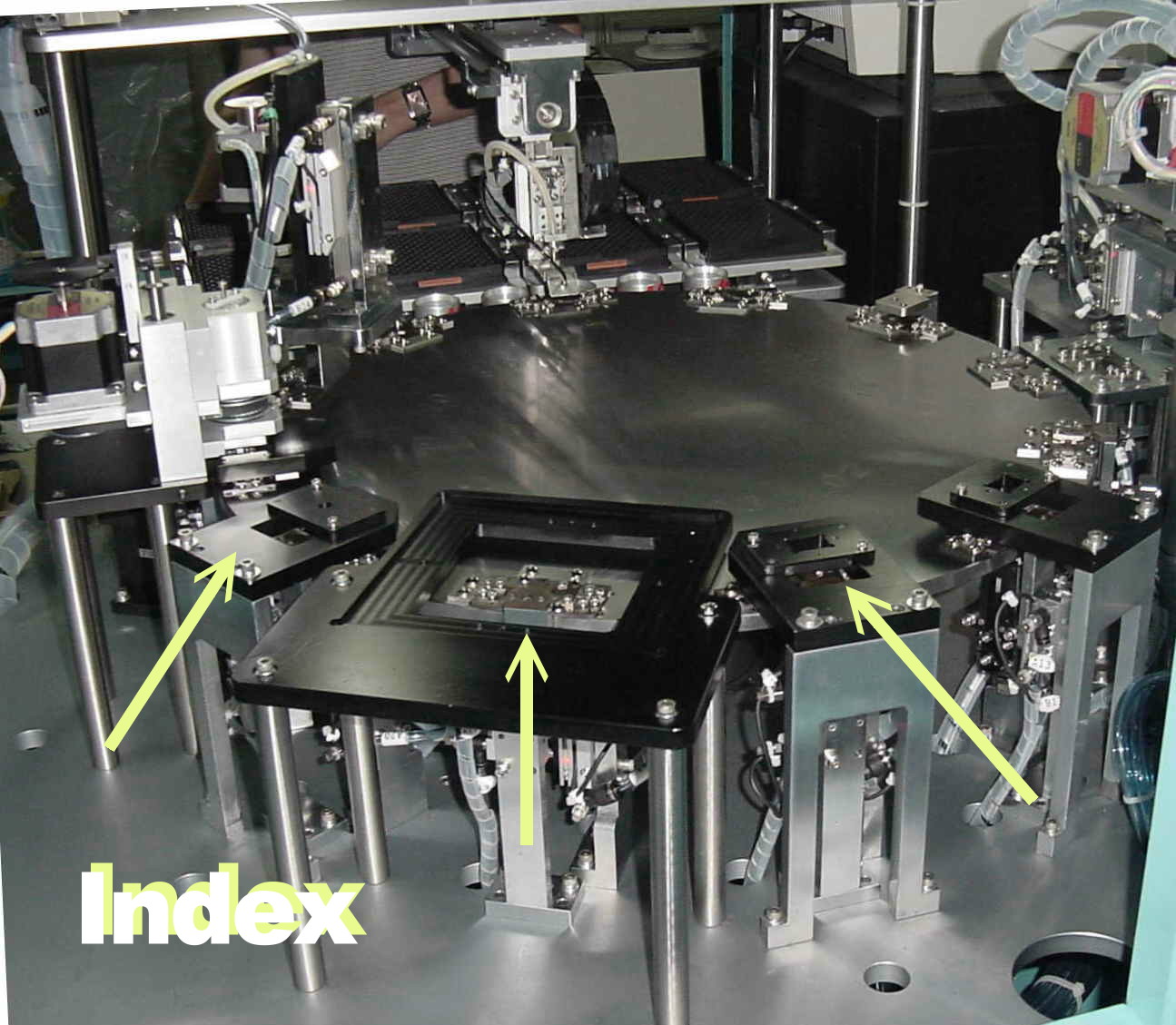

3. High accuracy index disc (12Dell).

4. Special design fixture mechanism.

5. Static electricity protection design.

6. IPC Control system

7. Operating System : Windows 2000

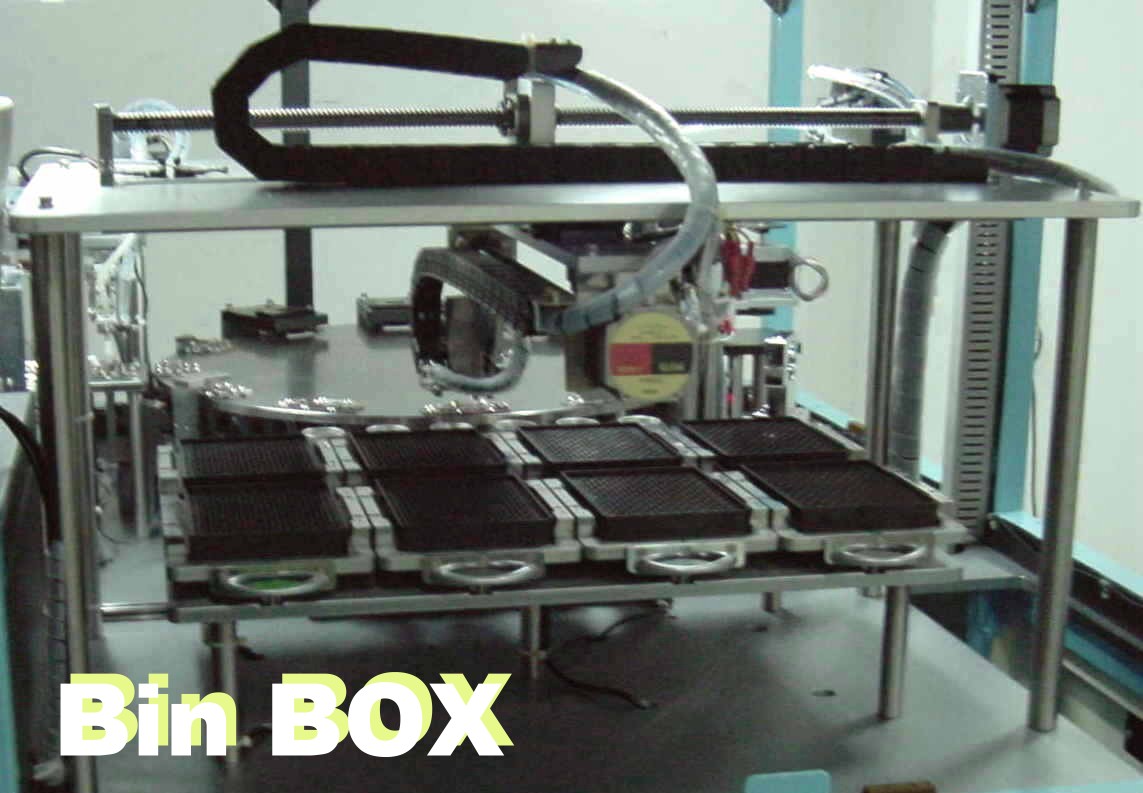

8. Binning : GO (8 Bin) and NG (8 Bin)

9. Type : TO-18, TO-46, TO-56 .

10.PPH : 0.8 K

*Exclude Tester System (Optional)

M/C Size & Weight   :
1. Overall Dimension   : 1400 x 1550 x 1900 mm ( LxWxH )

2. Net  Weight            : 1500 kg.

Utility :

1. Power Supply         : AC110V/60 Hz, 5Amp or AC220V/50 Hz, 3Amp

2. Air source              : 5Kgw/10L/min

3. Power Consumption: 16.5 W
