Features :

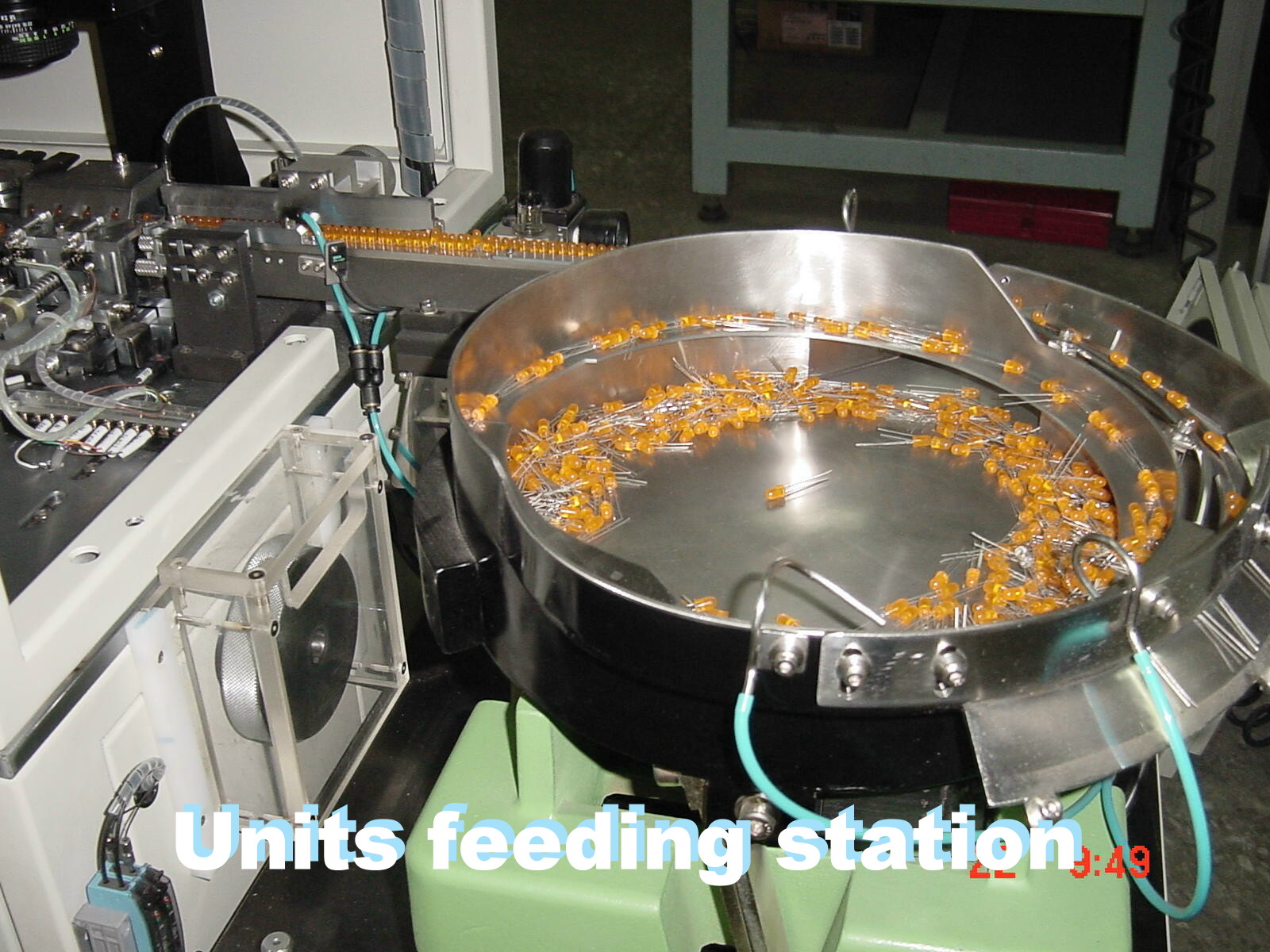

1. Auto feeding: bowl and linear feeder
2. Cam mechanism.
3. Auto combing by DC motor.

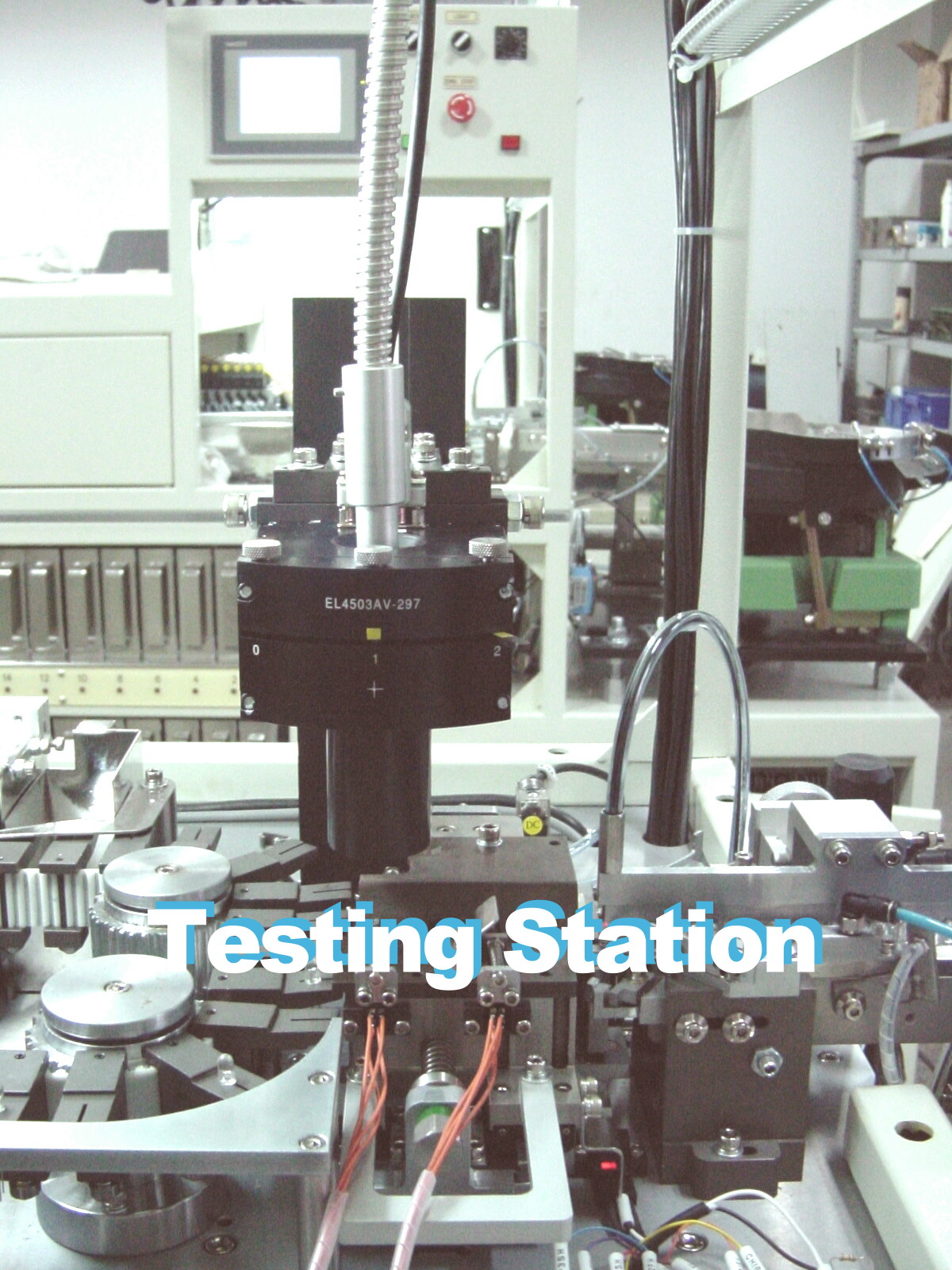

4. Polarity rotary and Kelvin Contact Testing function
5. Static electricity protection device.
6. PLC control system.
7. M-M-I touch interface screen.
8. Unloading by air blowing
9. Auto counting function.
10. Binning categories capacity : 68 Bins ( 0 ~67 Bin )
11.Type : Ø3, Ø5 ( other type need optional custom clamp )
12. PPH:9K

*Tester system model NO:EL-4503AV

M/C Size & Weight:
1. Overall Dimension   : 2050 x 800 x 1800 mm ( LxWxH )
2. Net Weight             : 800 kg

Utility :
1. Power Supply         : AC110V/60 HZ, 5 Amp or AC220V/50 HZ, 3 Amp
2. Air Supply              : 5 ~ 6 kg/ cm2; 60~80 psi; 30 L/min
3. Power Consumption: 600 W
